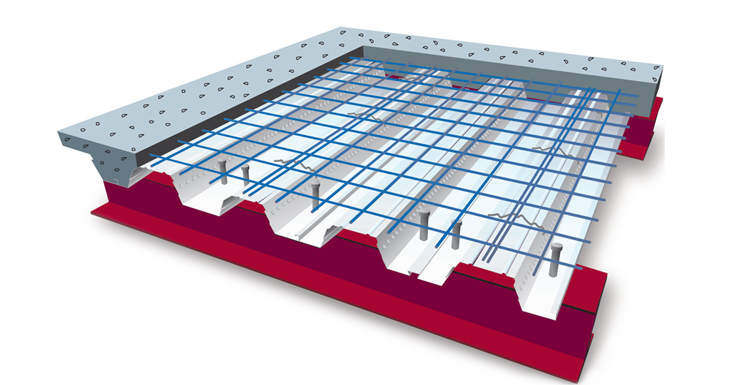

Alpha Deck is a composite slab that integrates deck plate and concrete.

이미지

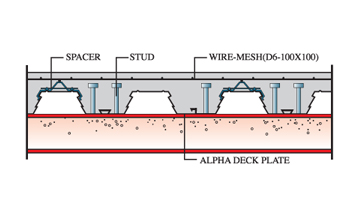

Cross section and form of the structure
이미지 이미지
Components
STEEL PLATE FOR STRUCTURE
(ALPHA DECK)		 CONCRETE WIRE MESH SPACER STUD
KS D 3506 KS F 4009 KS D 7017 KS D 3552 KS B 1062
Fused zinc coated steel plate
(Z12)		 Ordinary concrete strengthM
Over 21Mpa		 Different shape wire mesh
D6-100X100		 Carbon steel for machine structures
Slab thickness
Over 120mm		 Cover thickness
Minimum 20mm		 SM 10~20C
D16X`100~120mm (L)
Slump 12mm
± 2.5mm		 Lap splice length
200mm
Air content 4.5% ± 1.5%

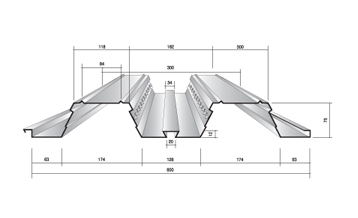

Cross-sectional performance
PLATE THICKNESS
T(mm)		 DEAD LOAD
Z12(kgf/m²)		 CROSS-SECTIONAL PERFORMANCE
CROSS SECTION AREA
As(cm²)		 NEUTRAL AXIS
Xs(cm)		 MOMENT OF INERTIA
Is(cm⁴)		 SECTION MODULUS
POSITIVE BENDING MOMENT Ze+(cm³) NEGATIVE BENDING MOMENT Ze-(cm³)
1.0 12.8 15.85 3.51 151.54 42.96 38.51
1.2 15.1 18.59 3.49 178.86 50.08 45.72
1.4 17.0 21.39 3.47 194.71 56.15 49.77
1.6 19.4 24.84 3.44 233.72 64.86 60.36
