General Concept of Void Slab System

Lightweight slab production method by placing lightweight parts in the center of the slab whose necessity is not that critical.

Lightweight / Consistent Performance / Reduction of Material

이미지

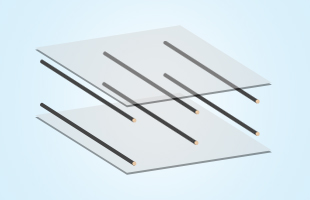

General Slab

이미지
이미지
이미지

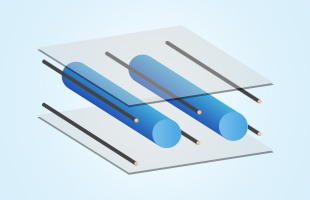

Void Slab

이미지
Structural Concept of Void Slab

Total slab material can be reduced by 20% to 40% depending on the shape of voiding material

High structural efficiency with about Flexural rigidity that is about 0.9 times stronger than existing slabs

Reduced shear strength due to reduction of slab cross-section

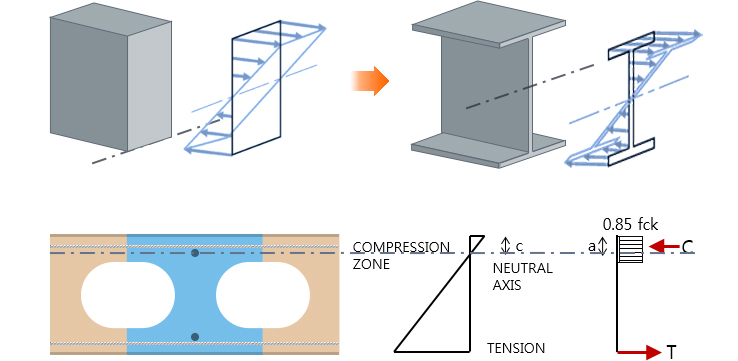

Bending Strength of Void Slab

이미지
Background of VOIDDECK Development
  • - Long lifespan apartments

    - Large span spatial structure

    이미지

    Long span structure

  • - Ease of design

    - Economic efficiency

    이미지

    Reduced floor height

  • - Institutional regulation

    - Social issues

    이미지

    Inter-floor noise

이미지

Long span structure

이미지 VOIDDECK
이미지 Resolution of the issues
associated with the
installation of existing void slabs
