Need for technology to minimize formworks for cost and environment

Formworks are essential for engineering methods using concrete, but it is desirable to minimize them to save manpower and cost, shorten construction period, and improve work environment. One way to minimize formworks on site is to adopt non-dismantled beam forms, which can be used permanently.
이미지 이미지

Many workforce input

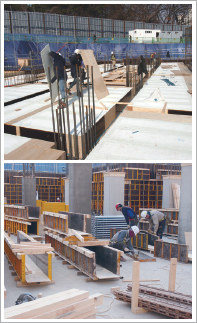

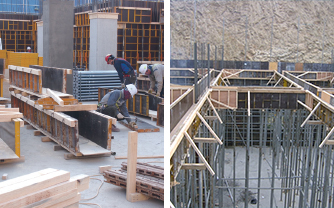

Conventional formwork method

Generation of waste materials

이미지

Development of WINHI_BEAM

  • Minimization of formworks (factory finished products)

    이미지

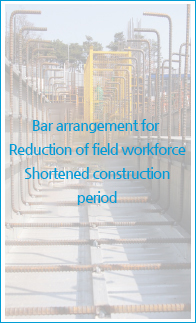

  • Reduction of field manpower and material input

    이미지
  • Improvement of site environment through non-dismantled beam form

    이미지

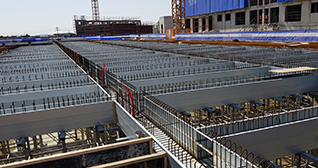

Sites applying WINHI_BEAM can minimize field manpower and material input and reduce waste materials.

New paradigm of beam form: non-dismantled beam form

WINHI_BEAM plays the role of a form required for concrete pouring. These non-dismantled beam forms are manufactured precisely in the automated line of WINHITECH and once installed, they are not removed permanently. A 1.0T galvanized steel sheet is produced through a forming line in the plant into a plate with the structural performance of temporary materials, and undergoes assembly process. Then it is installed on site to play the role of a form.
  • 이미지

    1.0T Galvanized steel sheet
    (7.85 kg/m²)

  • 이미지
  • 이미지

    Plate assembly and processing

  • 이미지
  • 이미지

/ Shape of WINHI_BEAM /

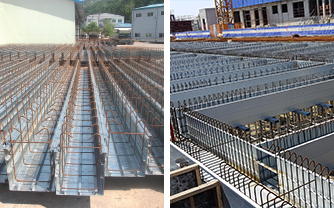

Basic Supplied Shape of WINHI_BEAM

이미지

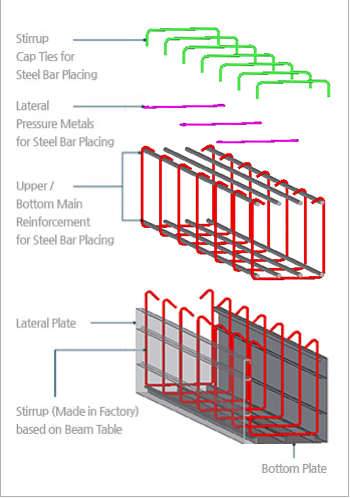

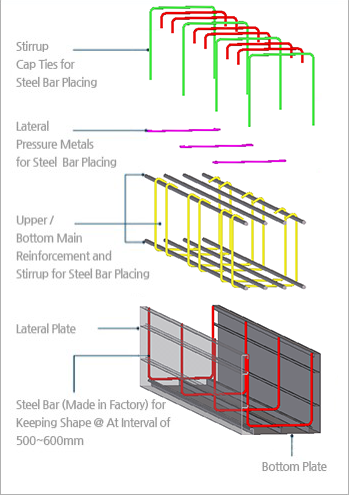

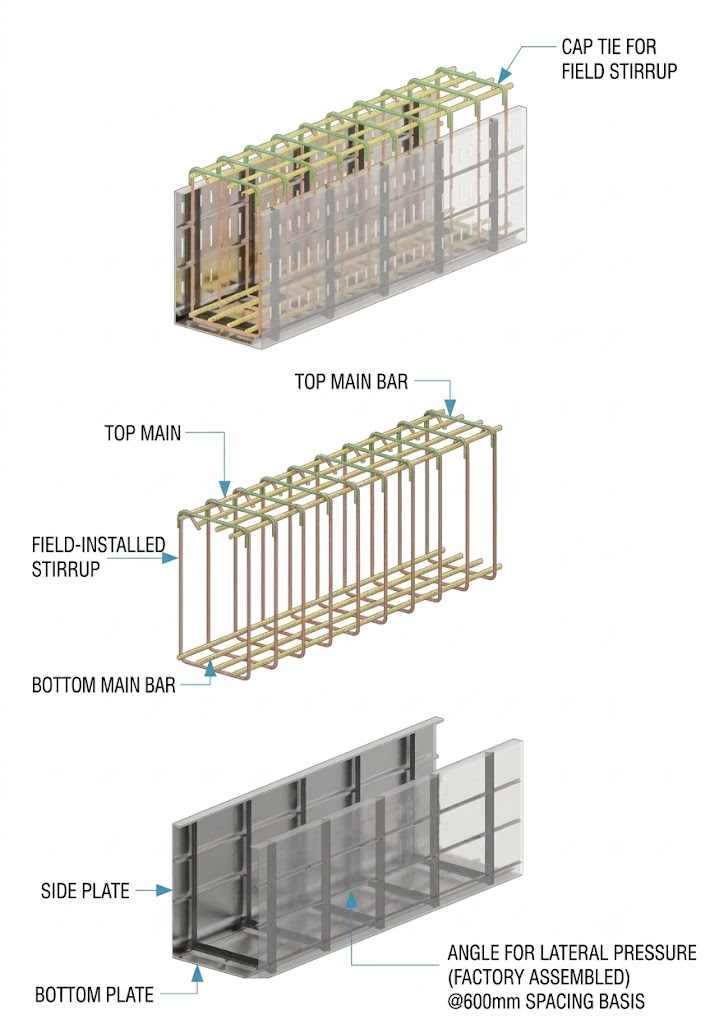

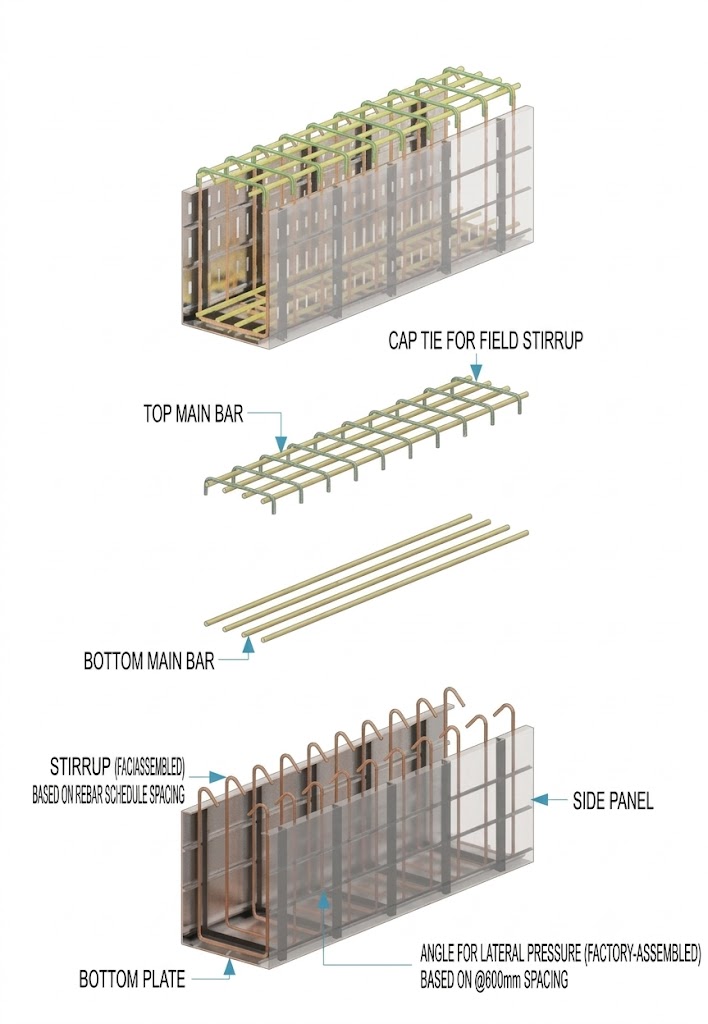

Basic Shape for Field Bar Arrangement of WINHI_BEAM

이미지
이미지

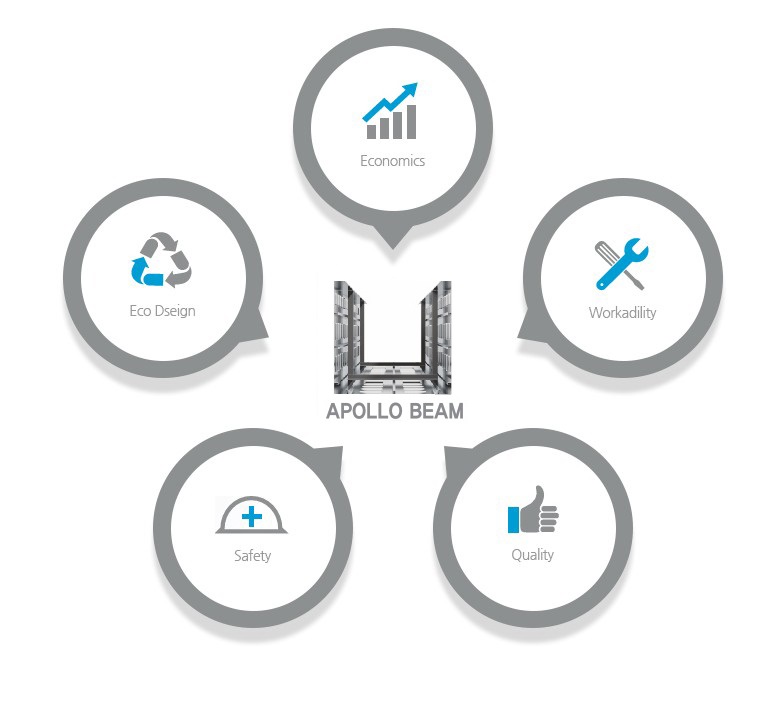

Economics
  • Reduction of manpower input to the site through pre-production in the factory

  • Reduction of material cost through systematic production/assembly planning

  • Construction period shortening effect

Reduction of material / labor costs

Labor and material costs for site installation and factory production are less than 5% and indirect cost (shortened construction period) is less than 25% of those of the conventional formwork Labor cost and material loss are saved due to pre-production in the factory.
이미지 이미지 이미지

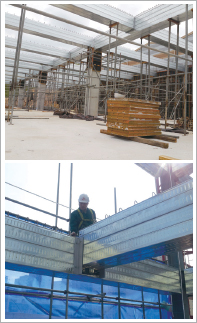

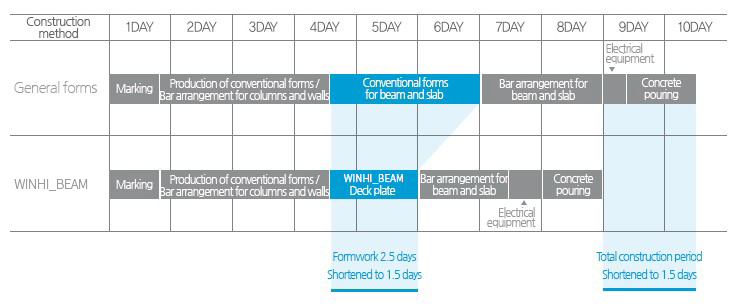

Shortened construction period

Because WINHI_BEAMs are used instead of the conventional forms, installation is simple and there is no need to remove forms after concrete hardening. Site installation process is simple due to factory production, and frame construction can be performed simultaneously at the site and factory. The application of WINHI_BEAMs can shorten construction period by approximately 15% compared to the conventional formwork. The effect of climate conditions is small.
이미지
Workability
  • Only minimum open stock yard is required because materials can be transported in accordance with the installation process.

  • Site transportation/equipment installation after factory production (no dismantling)

  • Site construction manpower can be minimized because site formwork is unnecessary.

  • Site management is easy because temporary materials are minimized (only support are installed).

  • Spacers are not necessary.

  • Column pre-pouring and simultaneous pouring methods can be applied.

이미지

WINHI_BEAM
applicable to
both methods

이미지

Column pre-pouring method

  • Column formwork is simple

  • Deformation during pouring can be prevented

  • Dismantling of column forms can be minimized (reusable)

  • A separate process is generated (advantageous for sequential construction method by area
    → Column forms reused in later columns)

Column simultaneous pouring method

  • Each floor can be completed in one process.

  • Column formwork is complex

  • Frame behavior deformation during pouring is possible (coping is impossible)

  • Total column forms are dismantled and reassembled.

Safety
  • Significant reduction in incident rate because the conventional form installation and dismantling process is omitted.

  • Field workforce and safety accidents are minimized .

이미지 이미지 이미지 이미지 이미지
Quality

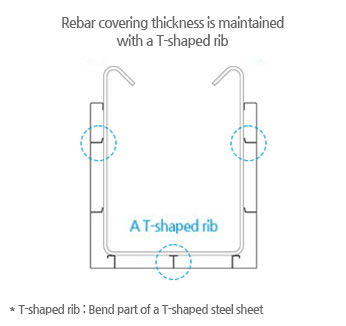

  • The T-shaped rib serves as rebar spacer to obtain rebar construction quality.

  • Construction quality can be maintained sufficiently with small field workforce.

  • Uniform covering thickness of the rebar is possible.

  • Excellent processability, durability, and weather resistance with galvanized steel sheet (KSD3506 – GI)

Construction quality

이미지

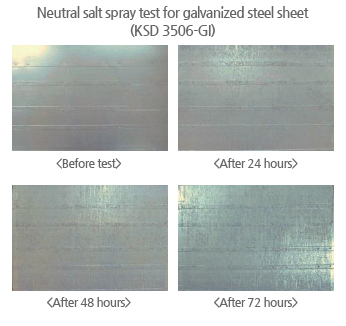

Durability and weather resistance

이미지

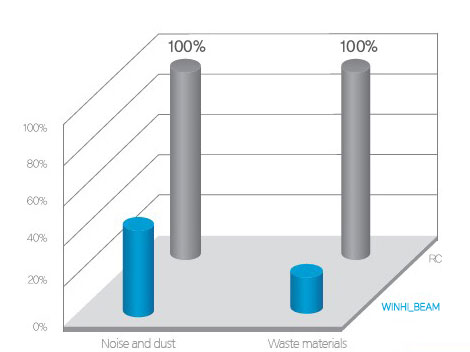

Eco Design
  • Comfortable work environment is possible because there are less noise and dust on the site due to forming and production in the factory.

  • Low-carbon eco-friendly construction method can be realized by minimizing construction wastes and reducing CO emissions.

이미지 이미지

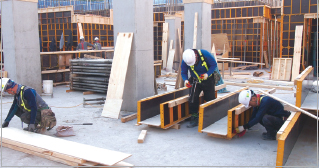

Conventional forms

이미지
이미지

WINHI_BEAM

이미지

Generation of construction wastes

이미지
이미지

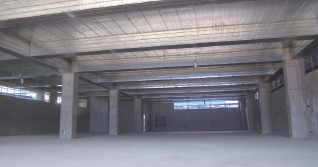

Minimization of construction wastes

이미지
WINHI_BEAM Factory Production Process
  • 이미지

    1Forming

  • 이미지

    2Sheet cutting

  • 이미지

    3Assembly

  • 이미지

    4Assembly

  • 이미지

    5Packing

  • 이미지

    6Transportation

Field Construction Sequence for WINHI_BEAM
  • 이미지

    1Material lifting

  • 이미지

    2Girder installation

  • 이미지

    3Beam installation

  • 이미지

    4Assembly of girder and small beams

  • 이미지

    5Arrangement of decks and rebars

  • 이미지

    6Completion after concrete pouring
