VPS(Void Plywood Slab) Development background

The void slab method, which is maintained in the same structural performance as the existing VOIDDECK method, is applicable to the general form (slat, egg-shaped) except T type deck plate.

Existing Method Features

이미지

- VOIDDECK Method (New Construction Technology No.778)

- Use deck plate instead of form

이미지

Complementation of the method

- Improved for applicable to the general form(slat, egg-shaped)

- Satisfied the Fireproof structure Regulations

- Approved floor impact sound barrier

- Void ratio equals

이미지

VPS Method Features

이미지 A method of securing the void material to the form in the same way as the existing method

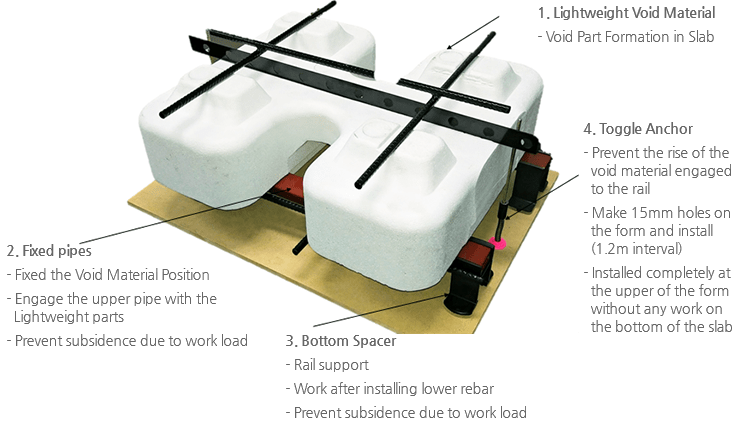

VPS Configuration
이미지
VPS Features
이미지
이미지

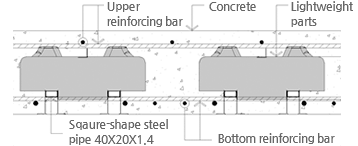

The thickness of concrete on the upper and bottom of the void material remains 100mm -> Fireproof structure satisfied

Because the thickness of concrete on the upper part of the void material is 87mm and the clearance between the materials is 160mm, the conduit free to deploy and easy to install

The Conduit Install
이미지

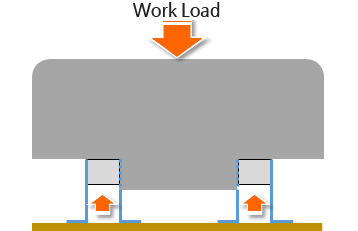

Prevent the subsidence of the void material because the working load on the upper of the void material is transferred directly from the spacer to the bottom of form

Prevention of buoyancy and subsidence
VPS Install Process
  • 이미지

    1. Bottom reinforcement / Bottom rail

  • 이미지

    2. Installing void materials

  • 이미지

    3. Upper Angle

  • 이미지

    4. Fixing Anchor Bolt

  • 이미지

    5. Installing upper reinforcement

  • 이미지

    6. Placing

VPS Install Performance
Incheon Munil Girl's Highschool Gross area 15,000m²
Applied section Teacher Building, Library
Standard VPS-250/500
이미지 이미지
Namdaemun Business Offices Gross area 5,000 m²
Applied section Underground Parking Lot and Arcade
Standard VPS-300
이미지 이미지 이미지
Eumsung Factory Welfare Center Gross area 2,000m²
Applied section Dormitory
Standard VPS-280
이미지 이미지
Garack-dong Residential-Commercial Complex Gross area 6,000m²
Applied section Underground Parking Lot and Arcade
Standard VPS-300
이미지 이미지

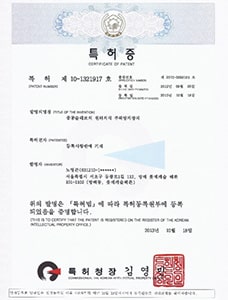

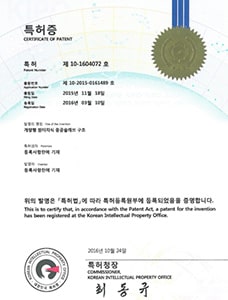

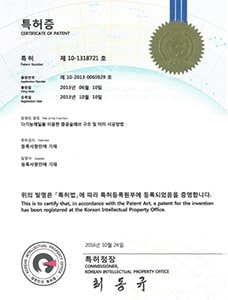

VPS Patent
이미지 이미지 이미지

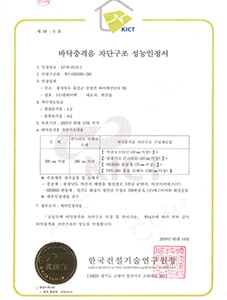

VPS Certificate
이미지
