Convex humps or concave depressions recessed on the wideband steel belt plate, it is mainly produced via cold rolling. The deck is uses mainly as the form below the concrete slab.

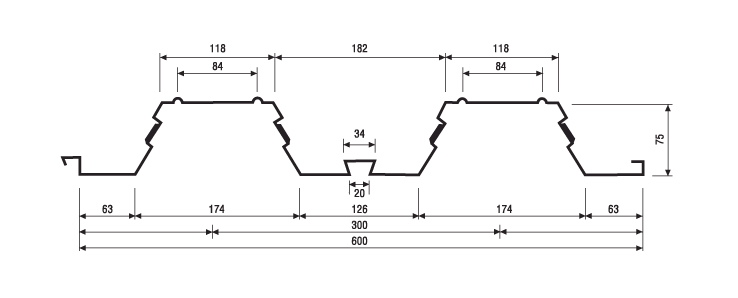

QL DECK cross section
이미지
QL Deck Cross-sectional Performance
PLATE THICKNESS
T(mm)		 DEAD LOAD
(kgf/m²)		 CROSS-SECTIONAL PERFORMANCE
CROSS SECTION AREA
As(cm²)		 NEUTRAL AXIS
Xs(cm)		 MOMENT OF INERTIA
Is(cm⁴)		 SECTION MODULUS
POSITIVE BENDING MOMENT Ze+(cm³) NEGATIVE BENDING MOMENT Ze-(cm³)
1.0 12.8 15.85 3.51 151.54 42.96 38.51
1.2 15.1 18.59 3.49 178.86 50.08 45.72
1.4 17.0 21.39 3.47 194.71 56.15 49.77
1.6 19.4 24.84 3.44 233.72 64.86 60.36
FORM DECK Cross-sectional Shape
  • 이미지

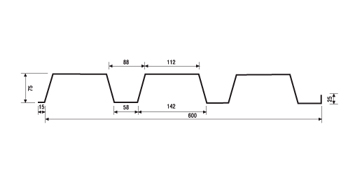

    DMP 600

  • 이미지

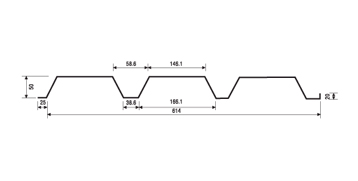

    DMP 614

  • 이미지

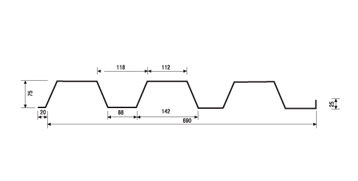

    DMP 690

  • 이미지

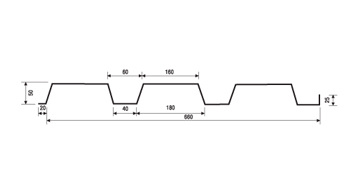

    DMP 660

FORM DECK Cross-sectional Performance
PRODUCT
NAME		 KS
STANDARD 		PLATE
THICKNESS		 DEAD LOAD
Z12(kgf/m²)		 CROSS-SECTIONAL PERFORMANCE
CROSS
SECTION AREA As(cm³)		 MOMENT OF
INERTIA
Is(cm⁴)		 SECTION MODULUS
POSITIVE BENDING MOMENT
Ze+(cm³)		 NEGATIVE BENDING MOMENT
Ze-(cm³)
DMP 600 ALK12 1.2 9.8 12.0 169.0 38.7 54.0
ALK16 1.6 12.8 15.8 222.0 50.7 70.9
ALK23 2.3 18.1 22.5 309.0 70.6 98.7
DMP 690 ALN10 1.0 9.0 10.9 146.0 36.5 41.7
ALN12 1.2 10.6 13.0 174.0 43.4 49.7
ALN16 1.6 14.0 17.3 228.0 57.0 65.1
ALN23 2.3 19.7 24.6 318.0 79.5 90.9
DMP 614 ALB12 1.2 8.6 10.5 60.5 17.6 37.8
ALB16 1.3 11.2 13.9 78.5 22.9 49.1
DMP 660 AL12 1.2 9.0 11.0 63.2 18.1 41.9
AL16 1.6 11.8 14.6 84.2 24.1 55.8
